Description:

Features:

• 48 Horse Power
• 2,700 lbs. Loader Lift Capacity At Pins
• Hydro Max or Shuttle Shift Transmission Option

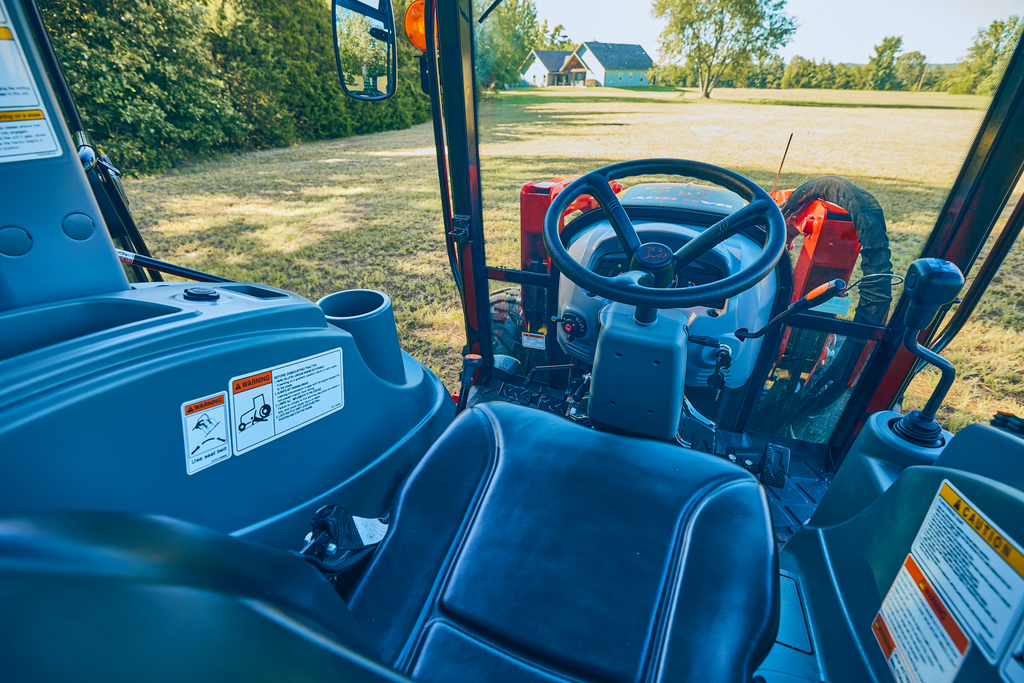

• Optional Climate-Controlled Cab with Leather, Heated Seat
• Power Steering
• Easy to Adjust Pin Style Stabilizer
• Cruise Control
• 4WD

Specifications:

Dimensions

• Overall Length (3P), in: 127.4
• Overall Width, in: 64.9
• Height to Top of ROPS, in: 97
• Wheelbase, in: 71.1
• Minimum Ground Clearance, in: 15.5
• Weight, lb: 4,349

PTO

• 540, 540E Speeds (RPM): 584, 791

Hydrostatic System

• Maximum Total Flow, GPM: 15.7
• Implement Pump Capacity, GPM: 10.7
• Steering Pump Capacity, GPM: 5

Hitch

• 3P Category: 1
• Hitch Lift Capacity, lb: 3,306
• At 24 inches behind link ends, lb: 2,425

Engine

• Model: A2300N2-UTR_4
• Fuel System: Water-Cooled Diesel
• Displacement, in³: 139.5
• Number of Cylinders: 4
• Rated Engine Power, HP: 48
• Rated Speed, RPM: 2,600
• Maximum PTO Power, HP: 38.4
• Emissions System: DPF/DOC

Transmission

• Type: HST (Hydrostatic)
• Number of Gears: 4 Range

Note: Snow pusher pictured is an added option. Tractor comes with bucket.
