Description:

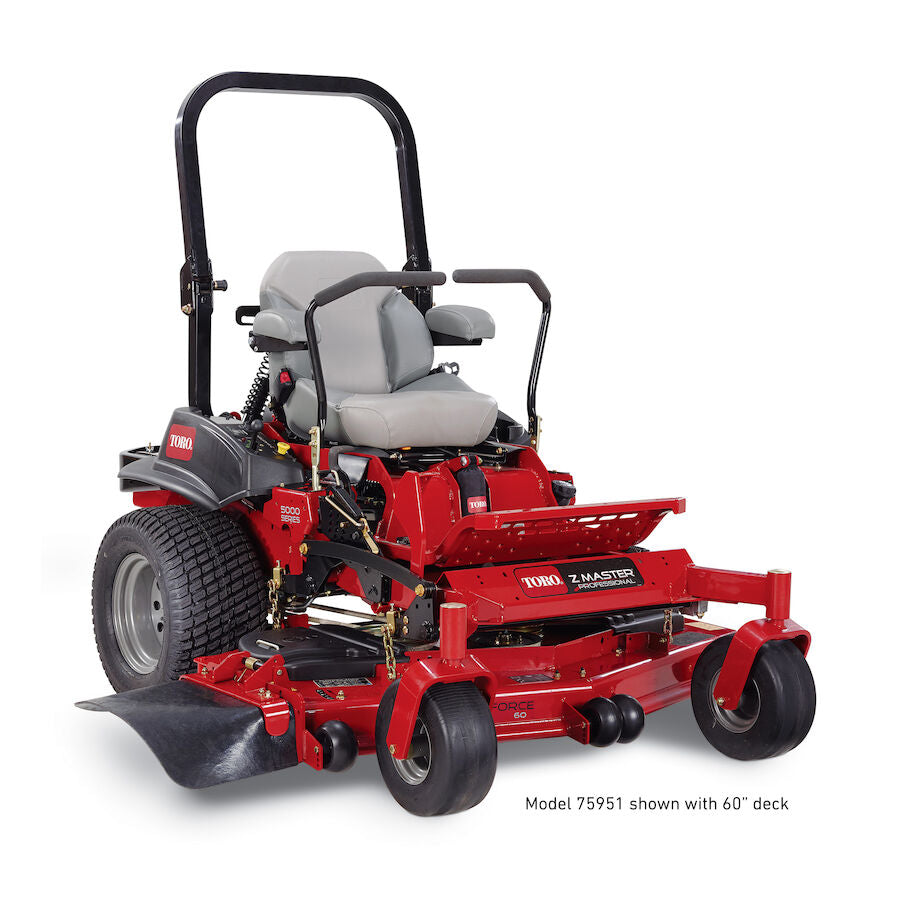

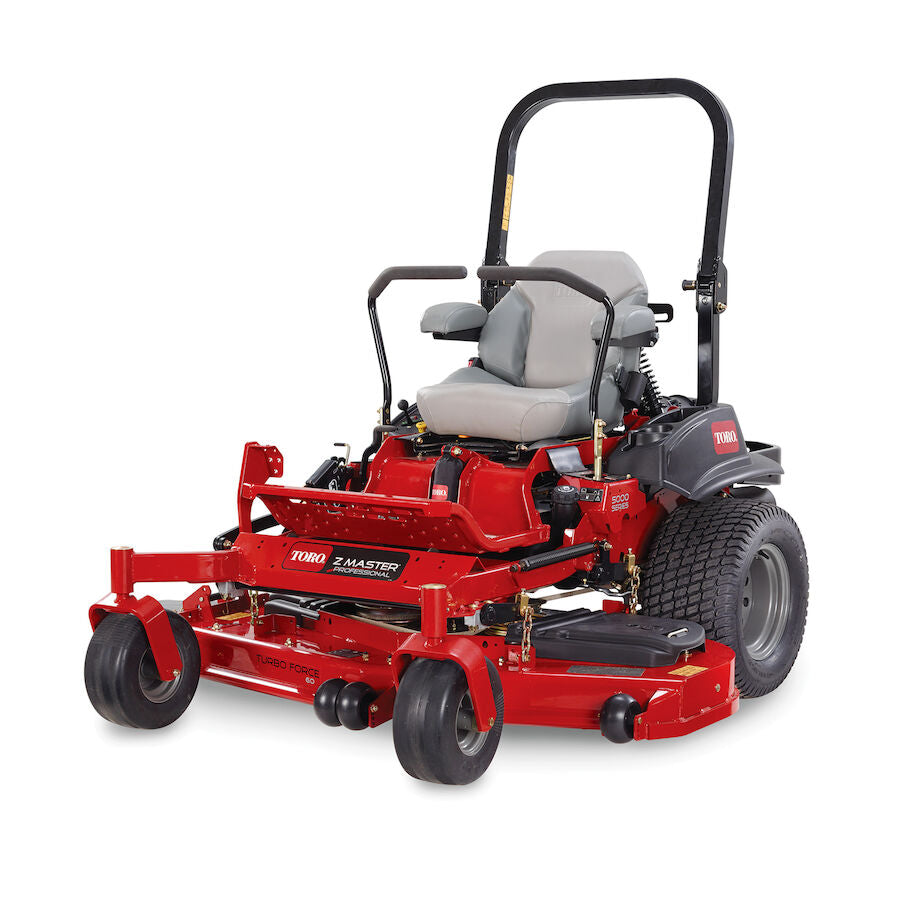

Z Master® 5000 Series- 25 hp (18.4kW) Kohler® Command Pro EFI 747cc Engine with 60 in. (152 cm) TURBO FORCE® deck and the all NEW amazingly comfortable MyRIDE® Suspension System.

Features:

• Redesigned MyRIDE® Suspension System features a fully suspended operator platform and adjustable rear shocks to provide a superior ride.
• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Product Features: Electric Start, Gas Powered, Hour Meter

Engine

• Engine Brand: Kohler
• Engine Model: Command Pro EFI
• Engine: 25 hp* (18.4 kW) Kohler® Command Pro EFI 747 cc
• Engine Displacement: 747 cc
• Engine Horsepower: 25 hp
• Fuel Type: Gasoline
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Ignition: Electric

Drive System

• Drive System: Hydraulic Unitized Pumps and Wheel Motors
• Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
• Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm – 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic

Deck and Cutting System

• Deck Size: 60 in. / 152 cm
• Deck Design: 80-Grade 7-gauge 60" (152 cm) TURBO FORCE® with Bull-Nose Bumper
• Deck Material: 11-Gauge Steel
• Discharge Chute: Rubber
• Adjustable Discharge Baffle: Standard, Tools-Free
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Number of Blades: 3
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Height of Cut: 1.0 - 5.5 in. / 2.5 - 14.0 cm
• Anti-Scalp Wheels: 6 Standard, 1 Optional

Comfort and Controls

• Comfort Platform: MyRIDE® Suspension System
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
• Armrests: Standard
• Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
• Shocks: 1 Front Center / 2 Rear
• ISO Mounts: Qty 4, 2.5 in. 3-D Isolation Mounts
• Cup Holder: Standard

Frame and Protection

• Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
• Front Bumper: Reinforced Bull-Nose
• Roll-Over Protection System (ROPS): Folding; Standard

Other Features

• Clutch: Electromagnetic
• Spindle Bearings: Maintenance-free
• Spindle Housing: 9 in. / 22.9 cm Diameter Cast Aluminum
• Hydraulic Fluid: Premium Synthetic
• Hour Meter: Standard
• CARB Compliant: Yes

Dimensions and Weight

• Box Dimensions: 91 in. x 70.5 in. x 52.5 in. / 213.1 cm x 179.1 cm x 133.4 cm
• Weight: 1,132 lbs / 513.5 kg

Width	Weight	Height	Length
0 Inch	1132 Pounds	0 Inch	0 Inch
